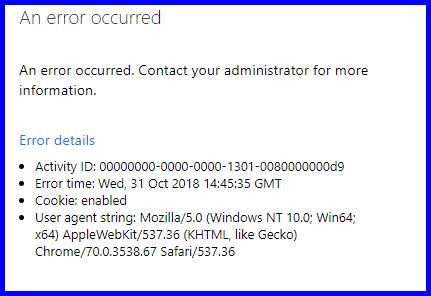

AD FS may produce “An error occurred” page when logging in or performing Test Connection
Problem: AD FS may produce “An error occurred” page when logging in or performing Test Connection
Symptom: you may find an error like this in the Windows Event Logs for AD FS on the AD
FS server:
Microsoft.IdentityServer.Web.InvalidScopeException:
MSIS7007: The requested relying party trust
'https://172.31.46.208/remote_auth/metadata' is unspecified or unsupported. If
a relying party trust was specified, it is possible that you do not have permission
to access the trust relying party. Contact your administrator for details.
Solution:
In CPM under General Settings > Identity
Provider you’ll want to ensure that the CPM IP or DNS is set to match the CPM_ADDRESS in this example image in AD FS:

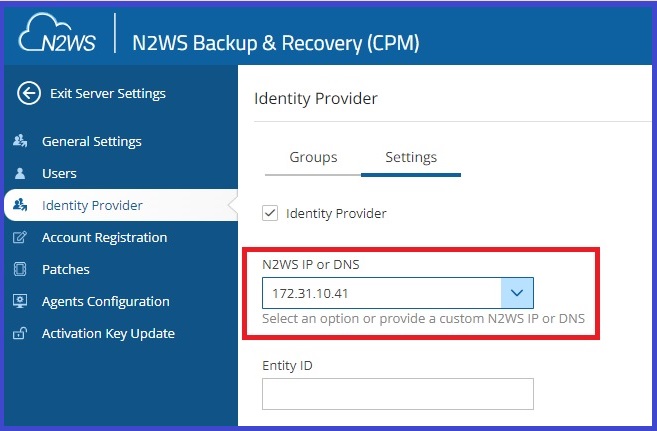

Field in CPM > General Settings > Identity Provider :
