CPM installation on Azure fails with error: Could not create disk in location us-east Reason: (Authorization Failure) The client does not have authorization to perform action Microsoft.Compute/disks/write over scope.

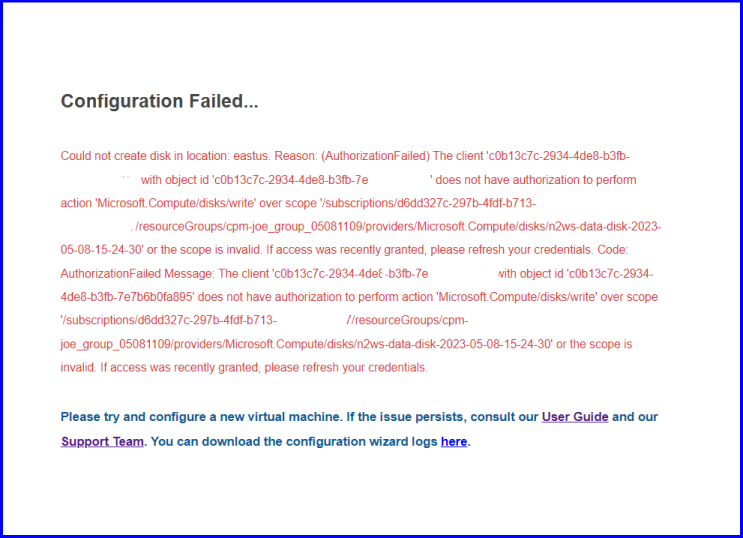

CPM for Azure installation may receive the error Could not create disk in location us-east Reason: (Authorization Failure) The client does not have authorization  to perform action Microsoft.Compute/disks/write over scope.

This is caused by not attaching the Role to the CPM Virtual Machine in Azure.

If you download the installation logs and review the cpm_config.log it shows the error as well.

2023-05-08 11:20:10,383:[140406230574848] ERROR:  create_and_or_attach_data_disk(config_applier.py:124)  create_and_or_attach_data_disk() - failed: Could not create disk in location: eastus. Reason: (AuthorizationFailed) The client 'c0b13c7c-2934-4de8-b3fb-############' with object id 'c0b13c7c-2934-4de8-b3fb-############' does not have authorization to perform action 'Microsoft.Compute/disks/write' over scope '/subscriptions/d6dd327c-297b-############/resourceGroups/cpm-joe_group_05081109/providers/Microsoft.Compute/disks/n2ws-data-disk-2023-05-08-16-20-10' or the scope is invalid. If access was recently granted, please refresh your credentials.

Code: AuthorizationFailed

Message: The client 'c0b13c7c-2934-4de8-b3fb-7e7b6b0fa895' with object id 'c0b13c7c-2934-4de8-############' does not have authorization to perform action 'Microsoft.Compute/disks/write' over scope '/subscriptions/d6dd327c-297b-############/resourceGroups/cpm-joe_group_05081109/providers/Microsoft.Compute/disks/n2ws-data-disk-2023-05-08-16-20-10' or the scope is invalid. If access was recently granted, please refresh your credentials.

To Resolve this issue please go to the Azure Portal and do the following:

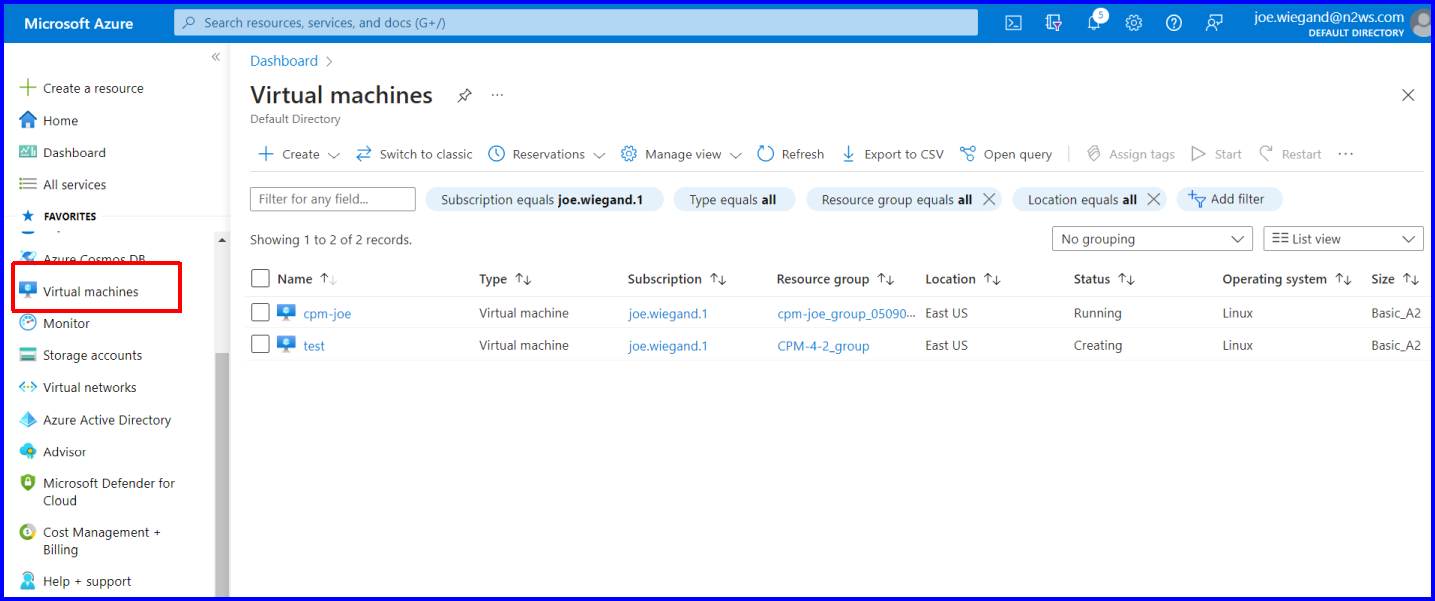

Browse to Virtual Machines and click on the CPM Virtual Machine. In this example its name is cpm-joe.

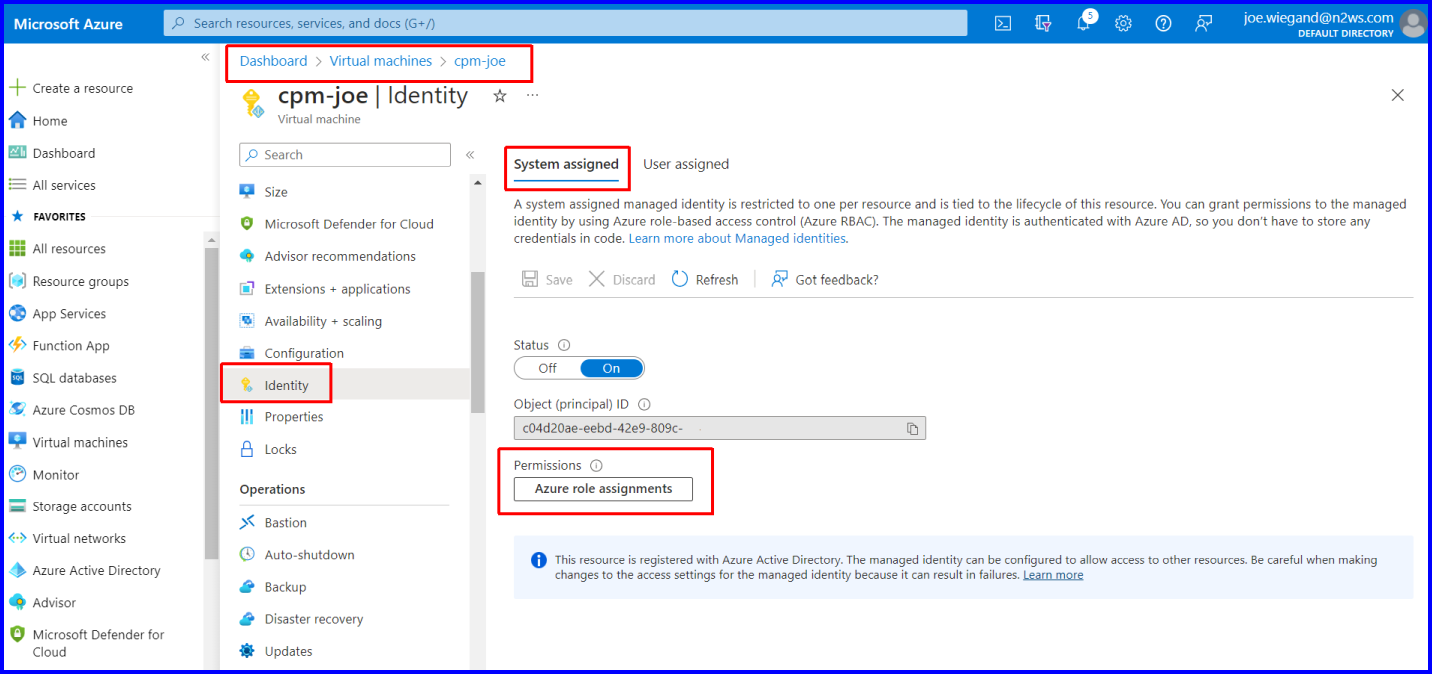

Select Identity under the Virtual Machine and the choose system assigned, Click on the Azure Role Assignments button.

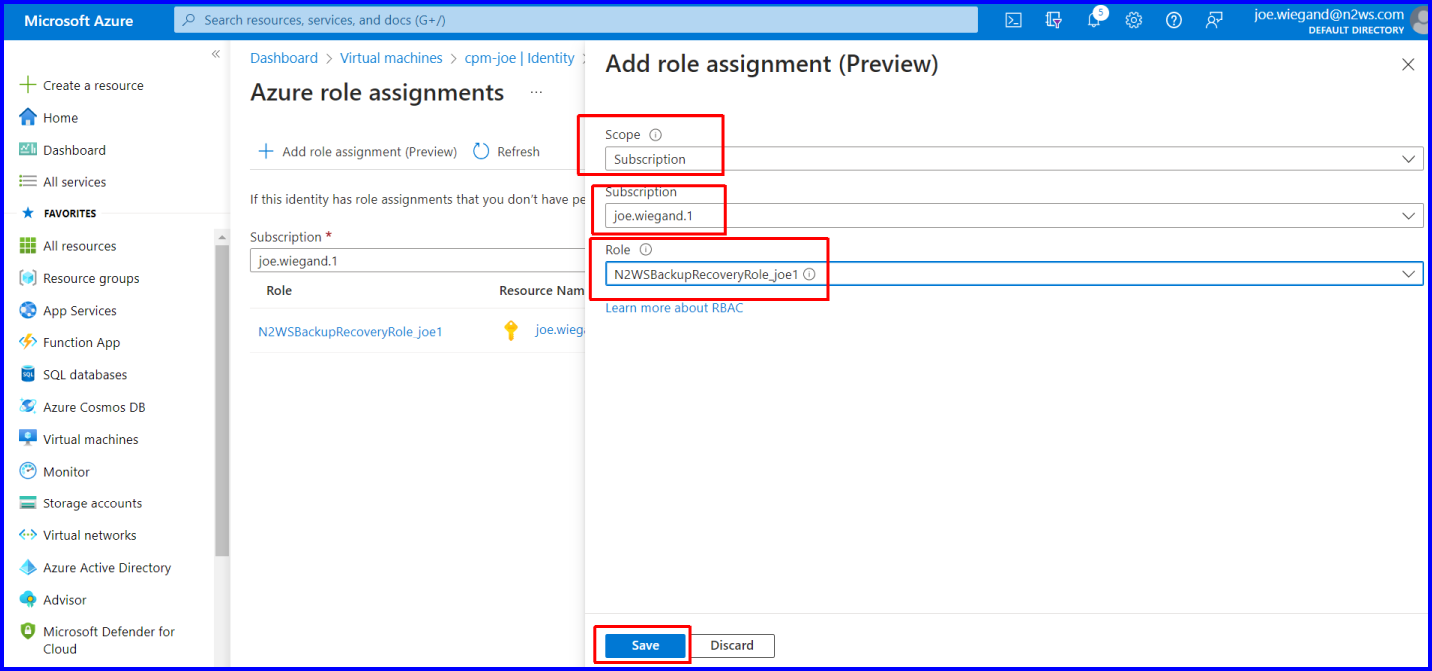

Please then select under the Scope drop down Subscription. Please make sure that in the Subscription drop down menu you select the correct Subscription. Browse under the Role and add the Role for this managed identity. Click Save.

Then in the CPM install screen hit f5 to go through the  CPM configuration and it should configure successfully.
